The Challenges of Direct Part Marking (DPM) and Post Process Treatments

We have been saying for quite some time now that laser Direct Part Marking (DPM) is the sturdiest way to implement a traceability system. We have put our beliefs to the test, and the results are in. Watch our webcast highlighting the results of our real-life tests of the robustness of aluminum laser marking.

Sturdy Laser Direct Part Marking Resists Several Post Process Treatments

Industrial lasers can be used to etch information, such as company logos, model numbers and texts, barcodes and 2D barcodes on various materials. Our experiments were conducted with Data Matrix codes etched on aluminum with T4, T6, T7 heat treatment using CobaPressTM. We also tested chromate conversion, shot blasting and e-coating.

Let’s start by going over some of the concepts required to understand the experiment: Data Matrix Code, focal length, laser feed, line spacing and the number of passes. Then, we will present the actual results of the tests.

2D barcodes - The Data Matrix Code

The DMC can be read by digital scanners either by hand or with an automated system. DMCs are composed of black and white cells that seem to be arranged randomly, but don’t get fooled by appearances. The patterns are highly codified. The content of the code is duplicated so that, even if some of the code is erased or otherwise rendered illegible, there won’t be any lost information. Try that with traditional linear  barcodes, which have no redundancy; information can easily be lost if the barcode becomes damaged.

Typical DataMatrix Code
Typical Data Matrix Code

Two sides of the code are solid black. The two others alternate black and white. These are the only localisation features of the DMC.

The background must extend beyond the code to create a quiet zone, a blank area that helps the scanner identify the end of the code.

The size of the code is commonly expressed in number of cells. This one has 24 by 24 cells and can hold up to 52 characters, It contains the message: https://www.laserax.com. That DMC can be etched (thanks to a high-resolution laser marker) on a 240 mm2 area (0.372 in2).

For more information on DMCs, download our ebook - Industrial Traceability: How barcodes work.

Characterisation of DMC

Two parameters are used to characterize the quality of the Data Matrix code. First, the contrast level is the difference of greyscale between the dark cells and pale cells.

The information encoded in the Data Matrix code is duplicated. The duplication ensures that even if a portion of the DMC is damaged, the message will be protected. In the image below, the size of the duplication is compared to the size of the actual message.

When the DMC is damaged, the scanner is using a portion of the duplication to get the complete message. The unused error is the duplication that is remaining to compensate for even more damage to the DMC. We prefer large unused errors because it signals a better protection for the message.

Image of unused error, duplication and message DMC.png

For more information on Data Matrix code, download our guide on Industrial Traceability: How Barcode Work.

Common Laser Parameters

Throughout this text we will discuss the best laser parameters for each post-process treatment studied. Several parameters affect the way the beam interacts with the material each need to be optimized to get the best marking results. Let’s define the most frequently used before getting in the thick of things.

Some Useful Laser Parameters

The focal length (FL) is related to the lens used. Lenses with a smaller FL converge faster; that means that the distance between the laser head and material will also need to be smaller. It might seem like a good thing; however, they also diverge faster, allowing only small variations in part positioning. Lenses with small FL tend to provide more intense beams.

The laser feed is the speed at which the laser beam sweeps the surface. Pulsed lasers are favored in most industrial applications. Since the elapsed time between the crest of each cycle is constant, the marking speed will have an important influence on the density of energy received by the material. Increasing the marking speed reduces the density of the energy delivered by the laser.

Line spacing is the distance between each sweeps of the laser beam. Smaller line spacing will provide more energy per unit area to the material.

Number of passes along with marking speed and line spacing, the number of passes determine the total marking time. It is the best way to create deep trench into the material.

Laser Direct Part Marking with Post Process Treatment

In the following webcast, we introduce the results of an experiment in which  DMCs engraved in aluminum parts were subjected to heat treatments, shot blasting, e-coating, combined shot blasting and e-coating, and finally chromate conversion coating. Guess what? We have found solutions to make good on our promise that laser DPM withstands all of those post-process surface treatments.

Hyperlink to webcast on post process treatment



We submitted a DMC etched by laser on a A356 sample to T4, T6/7 regular heat treatment as well as to T4, T6 and T7 heat treatments using CobapressTM. The following pictures are shown in befores and afters.

Heat Treatments (T4, T6 and T7)

Aluminum sample before being subjected to T4 Heat treatmentAluminum sample after being subjected to T4 Heat treatment

T4 Heat Treatment a) Before and b) After

The DMC etched on the part submitted to T4 (1 hour at 500 oC) had excellent legibility after the solution heat treatment, as can be seen in the pictures above.

Aluminum sample before being subjected to T6/7 Heat treatmentAluminum sample after being subjected to T6/7 Heat treatment

T6/7 Heat Treatment a) Before and b) After

The DMC etched on the part submitted to T6/7 (4 hours at 520 oC) had excellent legibility after the solution heat treatment, as shown in the pictures above.

Heat Treatments (T4, T6 and T7 with CobaPressTM)

Aluminum sample before being subjected to CobaPress T4 Heat treatmentAluminum sample after being subjected to CobaPress T4 Heat treatment

T4 CobaPressTM Heat Treatment a) Before and b) After

The DMC etched on the part submitted to CobapressTM T4 (1 hour at 500 oC) had excellent legibility after the heat treatment, as shown in the pictures above.

Aluminum sample before being subjected to CobaPress T6/7 Heat treatmentAluminum sample after being subjected to CobaPress T6/7 Heat treatment

T6/7 CobaPressTM Heat Treatment a) Before and b) After

The DMC etched on the part submitted to Cobapress T6/7 (4 hours at 520 oC) also had excellent legibility after the treatment, as shown in the pictures above.

Chromate Conversion Coating

Often used to inhibit corrosion, as a primer or for other aesthetic purpose, chromate conversion is a mild surface treatment. However, it has its own challenges when it comes to laser DPM.

Aluminum sample before being subjected to chromate conversionAluminum sample after being subjected to chromate conversion

Chromate Conversion Coating a) Before and b) After

Best results are achieved using a DMC with a cell size of 0.3 mm, 0.5 mm and 1.0 mm. The background of the DMC should be left natural for better results.

Shot Blasting

Shot blasting is used in the die casting industry to remove flashes at the joint plan and achieve  even surfaces throughout..

Regular Laser Marking does not Resist to Shot Blasting

Shot blasting is probably the most challenging surface treatment for DMCs engraved by laseror by any other means for that matter. The regular laser markings did not pass the test. As shown below, the markings were badly damaged by the shot blasting and became illegible.

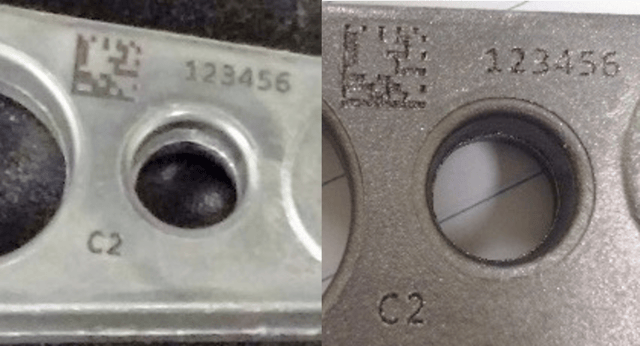

Aluminum sample before and after being subjected to shot blasting (shallow engraving)
Shot Blasting with Regular Laser Direct Part Marking a) Before and b) After

Laserax’s Special Laser Direct Part Marking Resists Shot Blasting

In order to protect the markings from the shot medium, we have dug deeper into the material. To do so, we used a lens with smaller focal length and a large number of passes.

Image explaining how deep engraving improve resistance to shot blastingTrenches need to be adapted to the shot medium to protect the DMC

Our best results, under the specific conditions of the experiment, was achieved with a 0.6 mm cell size. 12 passes were required, The entire marking process took about 37 seconds for a 100 W fiber laser. It is of the utmost importance that the cell size be adapted to the shot medium and process optimization is required for your specific configurations, as shown in the image above. Contact a laser expert to see if your process can be studied in depth.

E-coating

Very similar to anodization, e-coating consists of dipping the part in a bath that contains organic paint. An electrical current flow is established and attract the paint to the metallic parts.

Our tests showed that cells smaller than 0.75 mm gives poor results. White backgrounds do not affect either positively or negatively the legibility of the marking after e-coating.

Aluminum sample before being subjected to e-coatingAluminum sample after being subjected to e-coating

E-coating a) Before and b) After

Our best results were achieved with a cell size of 1.25 mm, marking speed of 600 mm/s, and line spacing of 0.175 mm. The best contrast achieved was 0.753 and unused error of 100. A DMC size of 20 mm took 2 seconds to mark with our 100 W laser.

Shot Blasting and E coating

Finally, a DMC laser etched aluminum part was subjected to both shot blasting and e-coating. See results below.

Aluminum sample after being subjected to shot blasting and e-coating (deep engraving)
After shot blasting and e-coating for different number of passes

Our best results were achieved with deep marking without whitening the background. An individual cell size of 0.6 mm, code size of 13.2 mm and 12 passes generated total marking time of 37 seconds.

Conclusion

Laser direct part marking can be used even with the most challenging post-treatment processes. Your regular laser marking will resist to T4, T6 and T7 heat treatments.

A white background doesn’t influence or have a negative impact on the legibility of a DMC after chromate conversion coating and e-coating. The cells of the DMC for e-coating should be bigger than 0.75 mm.

With a large number of passes and cell sizes adapted to the shot medium, we were able to get adequate DMC even after shot blasting.

Under some circumstances, e-coating will improve the legibility of the DMC that was previously subjected to shot blasting using our adapted marking procedure.

For more information on the experimental process and results, read the white paper published at NADCA Die Casting Congress and Tabletops 2017.

If you would like our expert to test laser marking for your specific surface treatment, click on the button below.

Contact a Laser Expert




Source: Fraser, Alex et al. (2017). “Important considerations for laser marking an identifier on die casting parts” NADCA Transactions 2017.
